It all started with annoying messages that nobody seems to understand (/var/log/syslog):

Apr 25 12:28:03 six kernel: [    1.346712] ata3.00: supports DRM functions and may not be fully accessible
Apr 25 12:28:03 six kernel: [    1.347278] ata3.00: supports DRM functions and may not be fully accessible
Apr 25 12:28:03 six kernel: [    3.047797] [drm] Initialized drm 1.1.0 20060810
Apr 25 12:28:03 six kernel: [    3.076720] [drm] Memory usable by graphics device = 2048M
Apr 25 12:28:03 six kernel: [    3.076726] fb: switching to inteldrmfb from EFI VGA
Apr 25 12:28:03 six kernel: [    3.076841] [drm] Replacing VGA console driver
Apr 25 12:28:03 six kernel: [    3.101307] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
Apr 25 12:28:03 six kernel: [    3.101309] [drm] Driver supports precise vblank timestamp query.
Apr 25 12:28:03 six kernel: [    3.143256] fbcon: inteldrmfb (fb0) is primary device
Apr 25 12:28:03 six kernel: [    3.146818] [drm] Initialized i915 1.6.0 20141121 for 0000:00:02.0 on minor 0
Apr 25 12:28:03 six kernel: [    3.424167] [drm:intel_set_pch_fifo_underrun_reporting [i915]] *ERROR* uncleared pch fifo underrun on pch transcoder A
Apr 25 12:28:03 six kernel: [    3.424202] [drm:intel_pch_fifo_underrun_irq_handler [i915]] *ERROR* PCH transcoder A FIFO underrun
Apr 25 12:28:03 six kernel: [    3.848413] i915 0000:00:02.0: fb0: inteldrmfb frame buffer device

What is this problem about FIFO (first-in-first-out) underruns? What is a transcoder? What is PCH? What is a DRM? The following quest will try to find some answers…

The system

What do I actually have residing in my laptop? First of all, it is important to know what to search for. There are three basic components that we need to know, namely, what is:

  • the processor
  • the chipset
  • the integrated graphics unit

Processor

I have a N56VZ which has an i7-3610QM processor. The processor architecture is from the Ivy Bridge variety (on 22 mm). There are plenty of datasheets available for the 7-series chipset (pdf). Note also that this Ivy Bridge series is also called the 3rd Gen Intel Core family (see also this Intel Datasheet (pdf)).

Chipset

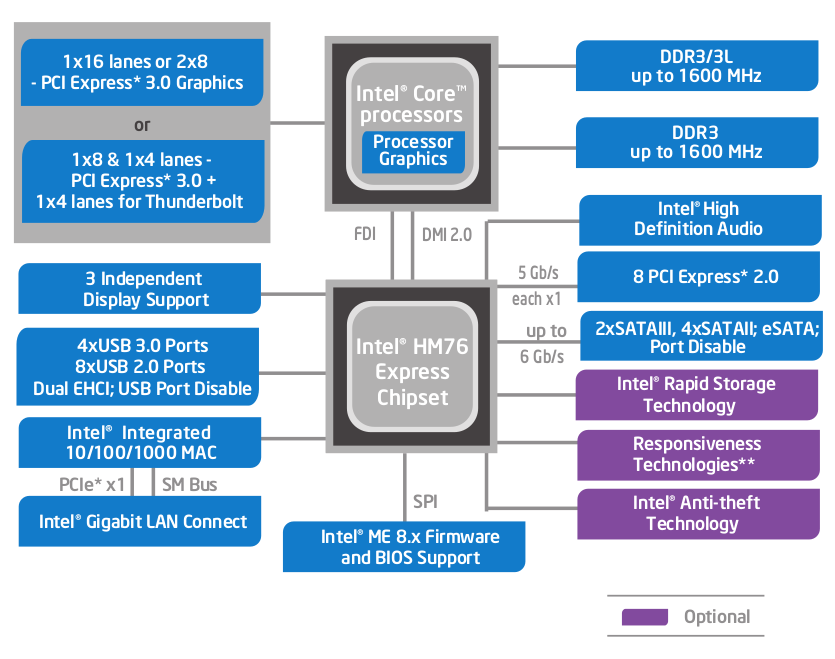

The chipset that is used in tandem with this processor is, some people state, the HM76 chipset. In particular, the BD82HM76 PCH. This “PHC” is known under the name Panther Point.

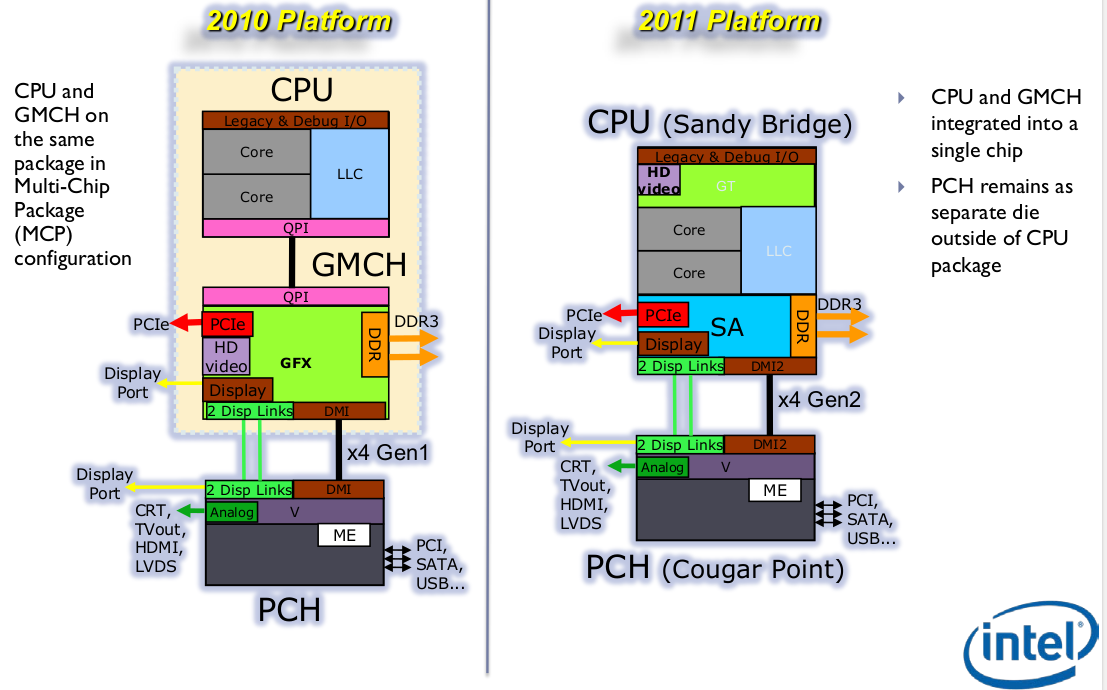

So, what we have here is a hardware setup that is divided over the CPU and a thing called a PCH. PCH stands for Platform Controller Hub. There are some nice pictures in a presentation (pdf) on the 2nd Gen processors, which show how both the CPU and the PCH are integrated in the same chip (but on separate dies). The PCH of this previous generation is called Cougar Point.

The "Cougar Point" Platform Controller Hub (2011)

Another picture from Intel shows the Panther Point PCH:

The "Panther Point" Platform Controller Hub (2012)

Anyway, we apparently have the BD82HM76 chipset, the “Panther Point” PCH (from 2012).

Integrated graphics

The Intel integrated graphics unit in my Intel Core i7-3610QM system is a HD Graphics 4000 running on 650 MHz base speed and 1100 MHz turbo speed notebookcheck.net. The HD Graphics 4000 is an Intel HD variant compatible with the Ivy Bridge line of processors.

Linux

So, how does Linux address this integrated graphics card? The first entity we encounter is the DRM (Direct Rendering Manager). The DRM provides a single entry point for multiple user-space applications to use the video card.

DRM Architecture by Javier Cantero - Own Work. Licensed under CC BY-SA 4.0 via Wikimedia Commons

The Direct Rendering Manager has a DRM core that is independent of the specific drivers required for whatever type of hardware that is on your system. It provides the interface to user-space code. A driver consists out of two parts, GEM (Graphics Execution Manager) and KMS (Kernel Mode Setting). GEM has been developed by Keith Packard and Eric Anholt (see lwn.net) from Intel.

The reasoning behind GEM is pretty interesting. It tries to remove latency as much as possible, which is nicely visualized by the following picture.

evdev and GEM by Shmuel Csaba Otto Traian. CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0) or GFDL (http://www.gnu.org/copyleft/fdl.html), via Wikimedia Commons

KMS allows to set display modes, as its name betrays, from kernel-space. A user space graphics server (like X) does now also not need superuser rights anymore (in theory). The display mode concerns matters such as screen resolution, color depth, and refresh rate. Of course, the functionality of GEM and KMS could have been implemented in a single software entity, but there are technical reasons not to do so (basically to account for split hardware).

Laurens Pinchart has a nice presentation on DRM, KMS, and in particular, writing drivers at YouTube. The picture below is from his presentation.

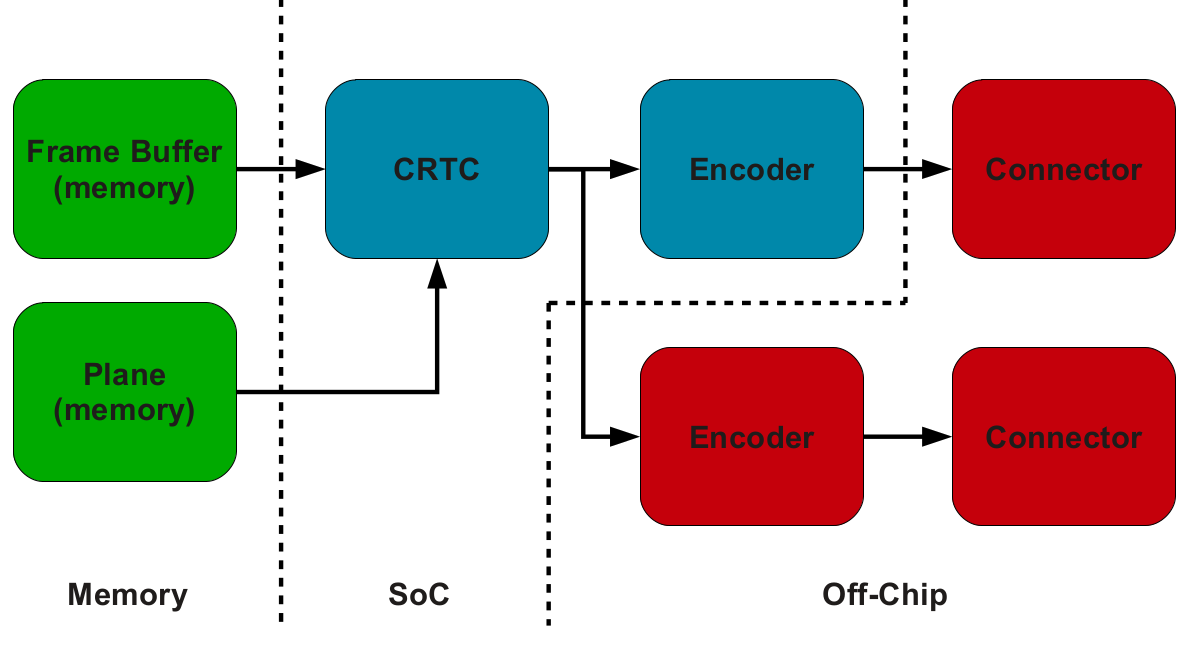

Device Model SoC (by Laurens Pinchart)

You see that in memory there are two structures, frame buffers (old) and planes (new). Subsequently, you see something that sounds very old-fashioned, a CRTC (Cathode Ray Tube Controller). This is just nomenclature from the past. It is basically a reference to a scan-out buffer, a part of (Video) RAM that will be displayed on your screen. It also has (a reference to) a display mode, offsets into the video memory, etc. The controller links to an encoder (which can be off-chip). If it links to multiple encoders, these will receive data from the same scanout buffer, so they will display the same, cloned, data. The connectors, finally, can be only connected to one encoder, and know how to talk HDMI, TVout, CRT, LVDS, etc. It also has the information about the display, EDID data, DPMS, and connection status. Make sure to read also the man-pages about drm-kms.

Startup with drm.debug=14 (or if you’re a hexademically inclined person, drm.debug=0x0e) and you will get plenty of debug information from the DRM. For example, that we have the Panther Point PCM is indeed confirmed in the syslog:

Apr 25 13:12:35 six kernel: [    3.243360] [drm] Initialized drm 1.1.0 20060810
Apr 25 13:12:35 six kernel: [    3.280255] [drm:i915_dump_device_info] i915 device info: gen=7, pciid=0x0166 rev=0x09 flags=is_mobile,need_gfx_hws,is_ivybridge,has_fbc,has_hotplug,has_llc,
Apr 25 13:12:35 six kernel: [    3.280271] [drm:intel_detect_pch] Found PantherPoint PCH

Just pore over the information yourself, restarting your computer with this debug flag. You will see for example how many display pipes are available (3 in my case). It will enable something like ENCODER:31:LVDS-31 and CONNECTOR:30:LVDS-1. And you spot how there are several connectors to choose from:

Apr 25 13:12:35 six kernel: [    3.303850] [drm:intel_dsm_platform_mux_info] MUX info connectors: 5
Apr 25 13:12:35 six kernel: [    3.303853] [drm:intel_dsm_platform_mux_info]   port id: LVDS
Apr 25 13:12:35 six kernel: [    3.303860] [drm:intel_dsm_platform_mux_info]   port id: Analog VGA
Apr 25 13:12:35 six kernel: [    3.303867] [drm:intel_dsm_platform_mux_info]   port id: HDMI/DVI_C
Apr 25 13:12:35 six kernel: [    3.303874] [drm:intel_dsm_platform_mux_info]   port id: DisplayPort_B
Apr 25 13:12:35 six kernel: [    3.303881] [drm:intel_dsm_platform_mux_info]   port id: DisplayPort_D

Something interesting to our errors are latency settings:

Apr 25 13:12:35 six kernel: [    3.304061] [drm:intel_print_wm_latency] Primary WM0 latency 12 (1.2 usec)
Apr 25 13:12:35 six kernel: [    3.304063] [drm:intel_print_wm_latency] Primary WM1 latency 4 (2.0 usec)
Apr 25 13:12:35 six kernel: [    3.304065] [drm:intel_print_wm_latency] Primary WM2 latency 16 (8.0 usec)
Apr 25 13:12:35 six kernel: [    3.304067] [drm:intel_print_wm_latency] Primary WM3 latency 32 (16.0 usec)
Apr 25 13:12:35 six kernel: [    3.304068] [drm:intel_print_wm_latency] Sprite WM0 latency 12 (1.2 usec)
Apr 25 13:12:35 six kernel: [    3.304070] [drm:intel_print_wm_latency] Sprite WM1 latency 4 (2.0 usec)
Apr 25 13:12:35 six kernel: [    3.304072] [drm:intel_print_wm_latency] Sprite WM2 latency 16 (8.0 usec)
Apr 25 13:12:35 six kernel: [    3.304073] [drm:intel_print_wm_latency] Sprite WM3 latency 32 (16.0 usec)
Apr 25 13:12:35 six kernel: [    3.304075] [drm:intel_print_wm_latency] Cursor WM0 latency 12 (1.2 usec)
Apr 25 13:12:35 six kernel: [    3.304077] [drm:intel_print_wm_latency] Cursor WM1 latency 4 (2.0 usec)
Apr 25 13:12:35 six kernel: [    3.304079] [drm:intel_print_wm_latency] Cursor WM2 latency 16 (8.0 usec)
Apr 25 13:12:35 six kernel: [    3.304080] [drm:intel_print_wm_latency] Cursor WM3 latency 64 (32.0 usec)

At virtuousgeek some matters are explained around power management of displays. For example memory can enter self-refresh in which it consumes way less power. The display plane FIFO watermarks can be set conservatively, however, this leads to long periods in which self-refresh doesn’t happen. It can be set aggressively, FIFO underruns can occur. See this nice FPGA implementation of a FIFO buffer to understand watermarks in more detail.

Now, we know what kind of hardware we have, let us first try to blindly apply the newest kernel from Intel…

Trying the newest DRM kernel

We try to run the newest kernel from the guys who are concerned with incorporating the lastest changes from Intel using the drm-intel-next packages from kernel.ubuntu.com:

#!/bin/sh

website=kernel.ubuntu.com/~kernel-ppa/mainline
kernel=2015-04-24-vivid
version=4.0.0-997
subversion=4.0.0-997.201504232205

wget ${website}/drm-intel-next/${kernel}/linux-image-${version}-generic_${subversion}_amd64.deb
wget ${website}/drm-intel-next/${kernel}/linux-headers-${version}_${subversion}_all.deb
wget ${website}/drm-intel-next/${kernel}/linux-headers-${version}-generic_${subversion}_amd64.deb

sudo dpkg -i linux-headers-${version}*.deb linux-image-${version}*.deb

Installing this kernel (contrary to just kernel 4.0.0 RC7 for example) leads to trouble. Moreover, the same error about underruns on the transcoder occurs… So, this is not something already being addressed… And that’s all we wanted to know. So, we go back to the default kernel (4.0.0-040000rc7-generic #201504142105 of April the 14th).

This gives me an idea. Let’s disable some of the power saving options of the i915 kernel module.

sudo grep '' /sys/module/i915/parameters/*

Subsequently I tried the option i915.enable_fbc=1 (to see if compression would lower the bandwidth and hence lead to fewer underruns). The rigorous option i915.powersave=0 didn’t work as well. There is an option i915.enable_rc6=3 on my system. I set it to 0, but I guess powersave overrules all that anyway. Also setting i915.fastboot=1 doesn’t get rid of the underruns. All this is not a very thought out approach anyway…

If you git clone git://kernel.ubuntu.com/virgin/linux.git v4.0-rc7, and navigate to drivers/gpu/drm/i915 you will encounter a file intel_fifo_underrun.c which supports underrun detection on the PCH transcoder. It is the last function in the file:

/**
 * intel_pch_fifo_underrun_irq_handler - handle PCH fifo underrun interrupt
 * @dev_priv: i915 device instance
 * @pch_transcoder: the PCH transcoder (same as pipe on IVB and older)
 *
 * This handles a PCH fifo underrun interrupt, generating an underrun warning
 * into dmesg if underrun reporting is enabled and then disables the underrun
 * interrupt to avoid an irq storm.
 */
void intel_pch_fifo_underrun_irq_handler(struct drm_i915_private *dev_priv,
					 enum transcoder pch_transcoder)
{
	if (intel_set_pch_fifo_underrun_reporting(dev_priv, pch_transcoder,
						  false))
		DRM_ERROR("PCH transcoder %c FIFO underrun\n",
			  transcoder_name(pch_transcoder));
}

It is nice that the message will be only displayed once. This is initiated through the IRQ from the Intel graphics unit. And, of course, this is at the end: it’s only the guy reporting the bad news.

The intel_display.c has a suspicious statement about Gen 2 chips:

/*
 * Gen2 reports pipe underruns whenever all planes are disabled.
 * So don't enable underrun reporting before at least some planes
 * are enabled.
 * FIXME: Need to fix the logic to work when we turn off all planes
 * but leave the pipe running.
 */
if (IS_GEN2(dev))
	intel_set_cpu_fifo_underrun_reporting(dev_priv, pipe, true);

Of course, this is reporting about underruns for the CPU, not the PCH, and it is Gen 2, not Gen 3 of the chips. But it might be a symptom of something peculiar in the hardware.

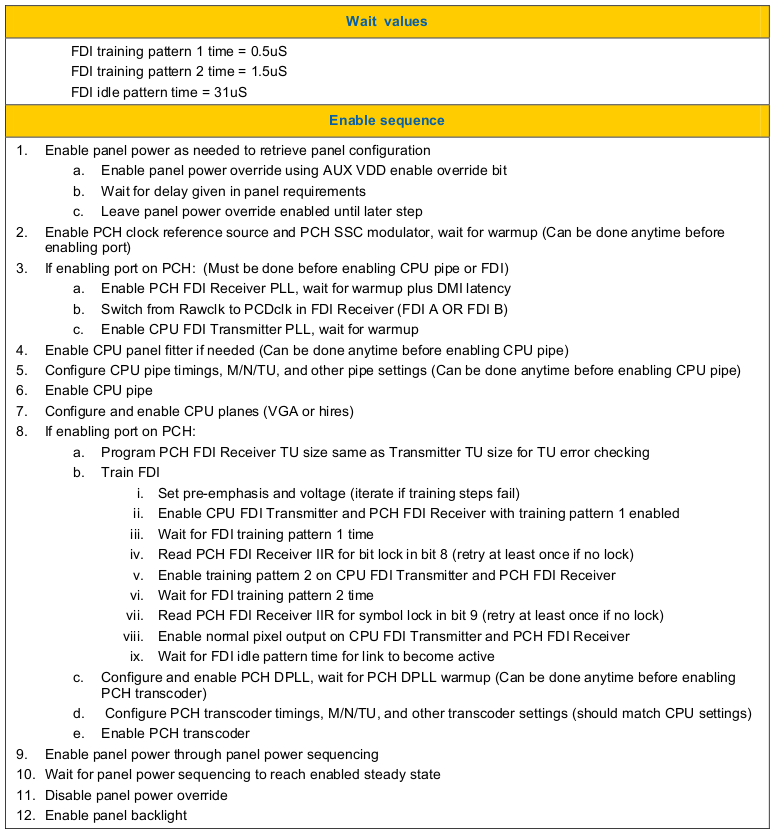

In the North Display Registers document you see a nice overview of the sequence in which the display needs to be set.

Display Mode Set Sequence

You can follow along in the code, in particular, in the function ironlake_crtc_enable. Here you will see an order like intel_enable_pipe -> ironlake_pch_enable -> intel_crtc_enable_planes. What is remarkable is that step 7 in which the planes are configured is done after the port on the PHC is enabled in the code. In the haswell code, this is the same, but this function is preceded with haswell_mode_set_planes_workaround. It is also interesting to note that the “Notes” in this table state that the CPU FDI Transmitter should not be set to idle while the PCH transcoder is enabled because it will lead to PCH transcoder underflow.

On bugzilla there are several bug reports on the FIFO underrun, such as 79261. However, none of them seems to be about the HD Graphics 4000 in particular, and even less providing any solution. A patch for ArchLinux just makes DRM_DEBUG messages from the DRM_ERROR messages.

What I can think of are only a few things (because I don’t understand much of it, yet):

  • Somehow the initialization isn’t done correctly. Clocks aren’t initialized at the right time, not synchronized. Or anything else with respect to initialization is forgotten.
  • Latency is configured incorrectly. Perhaps the BIOS of my Asus (although up to date) hands over latency values that are not sufficiently high.
  • The interrupt is generated incorrectly (as in Gen2, for example indeed when all planes are disabled).

My issues aren’t solved, so I’ll need to delve further into details some other time.

More literature

If you’d like to read more:

David Herrmann for example is the guy behind render nodes (integrated since 3.17).

The Intel 7 Series PCH datasheet contains all kind of interesting information. See for example Fig. 5-13 for another view on the display architecture.
